Switchboard upgrade in Gladesville for safer protection and future capacity
The existing 12-pole switchboard had limited room for future circuits and required improvements to its safety-switch protection and earthing. Russo Electrical upgraded the switchboard and meter-box arrangement, consumer mains and circuit protection.
A clearer, better-protected switchboard arrangement
These images come from the completed Gladesville job. They have been cropped to focus on the electrical work and stripped of location metadata.

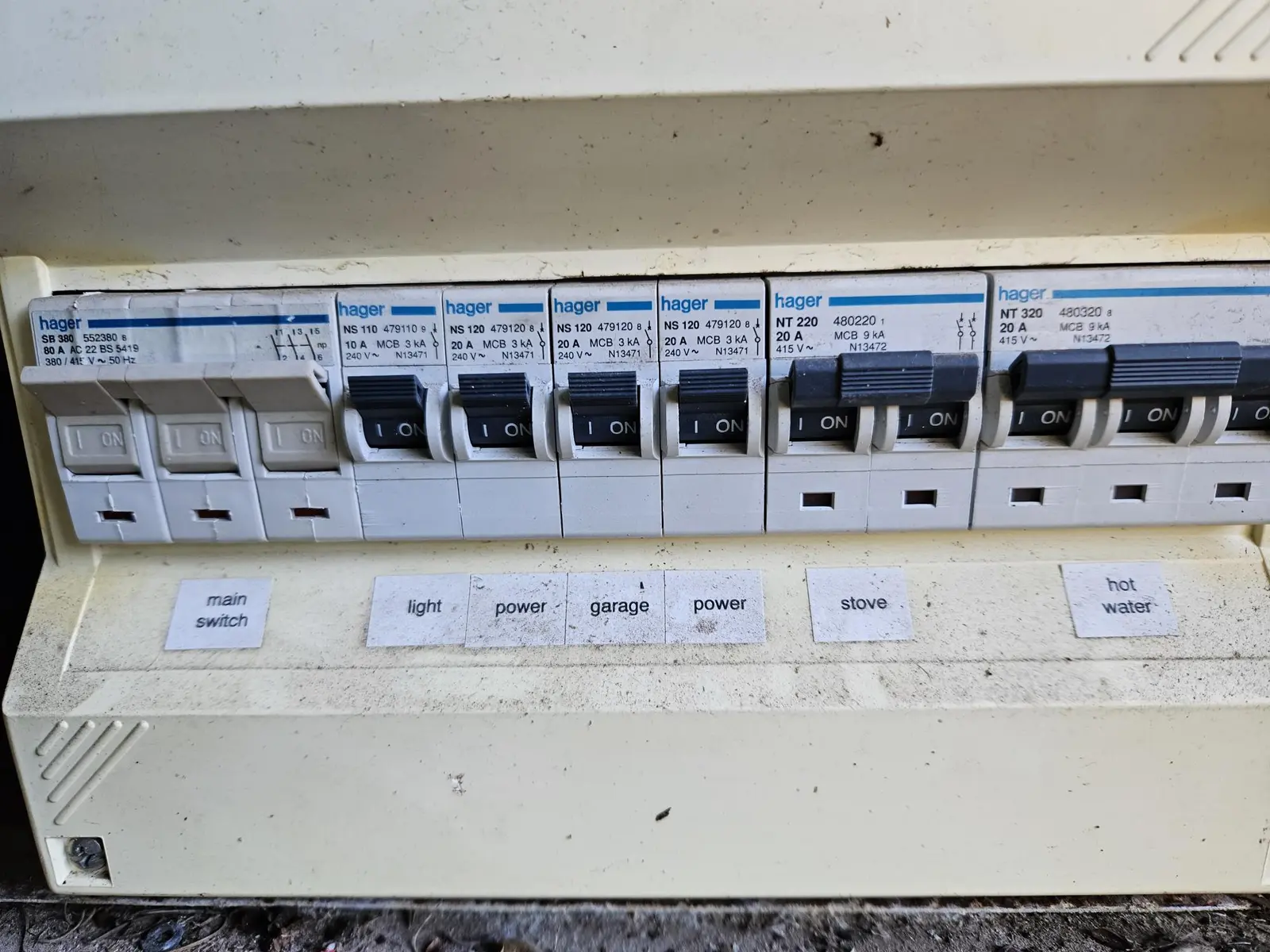

The existing board needed more than a simple component swap
The project record identified limited board capacity, issues with safety-switch protection and defects affecting the switchboard surround and earthing system.
What required attention
- A 12-pole board with insufficient room for future power circuits
- Safety-switch protection that required upgrading
- Defects affecting the existing switchboard surround
- An earthing system that formed part of the upgrade scope
What Russo Electrical delivered
- New switchboard and meter-box enclosure in the existing service area
- New 16 mm² XLPE consumer mains with mechanical protection
- New main switch, service fuses, neutral links and Hager RCBO protection
- New earthing electrode and associated earthing work
- Testing and clear switchboard labelling on completion
Planned from isolation through to final testing
The work included the Level 2 disconnection and reconnection requirements needed to complete the supply and switchboard upgrade safely.
Assess and plan
Review the existing board, supply arrangement, protection and earthing before confirming the upgrade scope.
Isolate safely
Coordinate the required Level 2 disconnection so the existing equipment can be removed safely.
Upgrade
Install the new consumer mains, meter-box arrangement, earthing and circuit-protection equipment.
Test and label
Complete electrical testing, label the switchboard and reconnect the upgraded supply.
Modern protection with room for future electrical needs
The completed work addressed the recorded switchboard, supply and earthing issues while producing a clearly labelled installation.
A completed Russo Electrical job in Gladesville
This case study is based on the recorded scope and completion photos for a genuine Russo Electrical project covering switchboard upgrades in Gladesville. Customer names, the street address, contact details, meter serial numbers and image-location metadata have been excluded.
